Find and Replace

Traditional "single document" Find and Replace is available in a number of UIs:

  • Document pane
  • Document pane Code view
  • VB Editor

InfoQube also supports field-based Find and Replace implemented as a non-modal dialog.

Two UIs support this:

  • Grids
  • Live-Search

1. Find and Replace in Grids

a


In grids, you can find and replace strings for any text column (i.e. text field). Steps are:

  1. Select 1 or more items in a grid
  2. Ensure the focus is on the column you want to perform Find and Replace. All text columns are valid
  3. Edit > Find and Replace

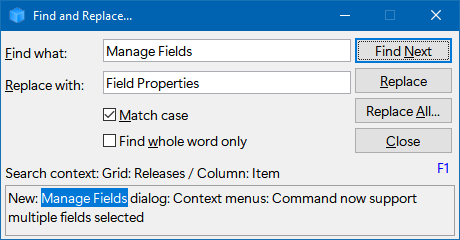

  4. The above dialog will show
  5. Enter a Find string and optionally a Replace string. Leave the replace string blank to delete text
  6. Press Find Next. The first match will show in the preview box
  7. The grid will move focus to the corresponding item. All panes will sync (Properties, Doc, Tags), providing context to help deciding on whether to replace or not
  8. Press Replace or Find Next to skip

To use Replace All:

  1. Select 1 or more items in a grid
  2. Click Replace All...

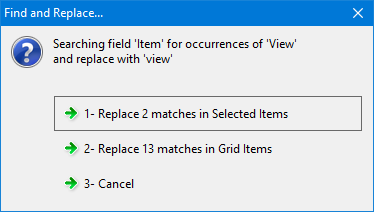

  3. This dialog will show:


Hint:

  • Find and Replace is performed for items in a grid, one column at a time. As the dialog is non-modal, you can leave it open and move the focus to a different column, or a different grid, to repeat the process
  • As you change the focused column / grid, the "Search context" will update
  • Only visible items are used. Expand / collapse / hoist items to control the range of items

2. Find and Replace in Live-Search

Using Find and Replace in Live-Search has a number of advantages w.r.t. grids

  • Global search for items
  • Logical operators (AND, OR, etc)
  • Tag filtering
  • Replace text in all text fields

Steps are:

  1. Open Live-Search
  2. Search for some items. More info on how to use Live-Search
  3. If 'Show Details' is not checked (dropdown menu), the Find and Replace will be done on the Item field only
  4. If you want to replace text in all text fields, or in any other field than Item, enter the search text and turn on 'Show Details'

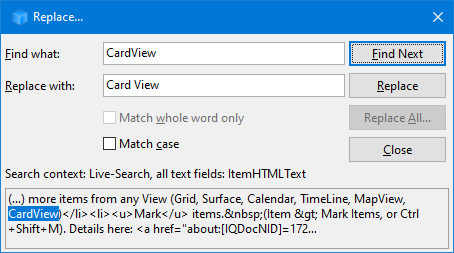

  5. This dialog will show:



  6. Notice the Search Context. It shows 'all text fields' followed by the current matching field
    (ItemHTMLText is one of the fields used by the Doc pane)
  7. Review the pane content, in this case the Doc pane and click Replace, or to skip, click Find Next
  8. Replace All button is not enabled when all text fields are searched (i.e. Show Details is checked)
