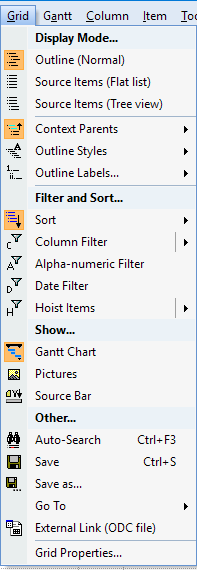

Grid Menu

• Display Mode...: See 1. Grid Display Modes
• Context Parents: Select the number of context parent levels to display
• Outline Styles: See 3. Outline Styles
  • Manage Styles...
  • Override Item Settings
  • List of defined Outline styles

• Sort: Sort settings. See 5. Sorting and Grouping Items
• Filtering: See 2. Filtering
  • Column Filter
  • Alpha-numeric Filter
  • Date Filter
  • Hoist Items. See Hoist Filter

• Gantt Chart: Show / Hide the Gantt portion of the grid. See 5. Gantt Menu
• Pictures: Toggles the display of images in the grid. When turned off, the image file name is shown. To view the image, use the Image Viewer. See: 8. Image Viewer
• Source Bar: Show / hide the grid source bar. Details: Grid Source EditBox
• Done Checkbox: Show / hides a checkbox on the tree column. Check to set the item as done

• Auto-Search: Toggles Auto-Search mode. See: 2. Grid Auto-Search
• Save: Saves the current grid configuration. Optional as closing the grid automatically saves it. Sometimes useful, such as updating the Shown In column of Live-Search
• Save as...: Save a copy of the grid under a different name. Having 2 nearly identical grids is useful to have 2 views with different column sets or different sorting / grouping / filtering
• Go To: Navigates in the grid:
  • First item
  • Previous page
  • Previous item
  • Next item
  • Next page
  • Last item
  • New item: Adds an item after the current item. Same as pressing Enter
• External Link (ODC file): See 7. Live Links to IQ Grids from Word and Excel

• Grid Properties...: Opens the Manage Grids dialog, showing the current grid properties. Details: 6. Manage Grids Dialog
